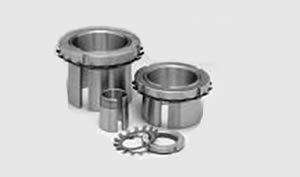

Bearing Sleeves being distributed by us are very qualitative in nature. These are made up of very hard metals that are typically pressed into por0us forms. These are commonly wide cylinders soaked in oil. The wholes which are linked inside carry the oil inside the sleeve. The sleeve is very sophisticated but least expensive in comparison to others.
Bearing Sleeves & Housings / Blocks
Backed by our dedicated team of personnel, we provide a wide range of Housings / Blocks. These are made with best quality raw material and are appreciated for their sturdiness, corrosion resistance, dimensional preciseness and durability. We offer customized solutions for our complete assortment on the basis of the client’s specifications.
FAG housings and the associated bearings form bearing arrangement units that have proved themselves in machinery, plant and other equipment. FAG bearing housings are predominantly made from flake graphite cast iron. Housings made from cast steel and spheroidal graphite cast iron can be supplied by agreement. Since the bearings are normally lubricated with grease and the initial charge is effective for a long period, most housings do not have relubrication holes. However, gates or marks are present so that lubrication holes can be made if required. When relubrication is carried out, it must be ensured that excess grease can escape..we are Leading Supplier's, Trader's & Distributor's The bearing seats in the housing are generally machined such that the bearings are movable and can thus act as non-locating bearings. Locating bearing arrangements can be achieved by inserting locating rings if these are listed in the tables. Locating rings must be ordered specifically. Housings without locating rings are supplied in a non-locating bearing version (L) or a locating bearing version (F). All unmachined outer surfaces of FAG housings and housing parts have a universal coat of paint (colour RAL 7031, bluish grey). The paint can be covered by all resin, polyurethane, acrylic, epoxy resin, chlorine rubber, cellulose and acid-hardening hammer grey enamels. The anti-corrosion protection of the machined inner and outer surfaces can be easily removed. Depending on the operating conditions, contact seals, non-contact seals and combinations thereof are available for sealing of bearing housings, see the schematics.
