Linear recirculating roller bearing and guideway assemblies rue are, due to the use of cylindrical rollers, the INA monorail guidance systems with the highest load carrying capacity and rigidity. They comprise at least one carriage with a full complement roller system, a guideway, integrated elastic wipers on the end faces of the carriage, sealing strips on the upper and lower faces of the carriage and closing plugs to close off the fixing holes in the guideway. The carriage and guideway of a linear recirculating roller bearing and guideway assembly are matched to each other as a standard system due to their closely toleranced preload. It may be possible, after consultation, to use carriages and guideways in different combinations. Linear recirculating roller bearing and guideway assemblies are suitable for accelerations up to 100 m/s2, speeds up to 180 m/min and operating temperatures from –10 °c to +100 °c. They are used in applications with long unlimited stroke lengths, high and very high loads and high to very high rigidity. The units are also available in a design with optimised noise to x-life quality.
Monorail Guidance Systems
Six-row linear recirculating ball bearing and guideway assemblies. Six-row linear recirculating ball bearing and guideway assemblies KUSE are the ball-based guidance systems with the highest load carrying capacity and rigidity. They comprise at least one carriage with a full complement ball system, a guideway, integrated elastic wipers on the end faces of the carriage, sealing strips on the lower face of the carriage and plastic closing plugs. Linear recirculating ball bearing and guideway assemblies KUSE are suitable for accelerations up to 150 m/s2, speeds up to 300 m/min and operating temperatures from –10 °C to +100 °C. They are used in applications with long unlimited stroke lengths, high and very high loads and high to very high rigidity. Four-row linear recirculating ball bearing and guideway assemblies Four-row linear recirculating ball bearing and guideway assemblies KUVE are the most versatile and comprehensive range of monorails from INA. These units comprise at least one carriage with a full complement ball system, a guideway, integrated elastic wipers on the end faces of the carriage, sealing strips on the upper and lower faces of the carriage and plastic closing plugs. Linear recirculating ball bearing and guideway assemblies KUVE are suitable for accelerations up to 150 m/s2, speeds up to 300 m/min and operating temperatures from –10 °C to +100 °C. They are used in applications with long unlimited stroke lengths, high loads, high rigidity and low friction. The units are also available in a design with optimised noise to X-life quality. Two-row linear recirculating ball bearing and guideway assemblies Two-row linear recirculating ball bearing and guideway assemblies are the economical alternative where guidance systems with moderate load requirements are concerned. The units comprise at least one carriage with a full complement ball system, a guideway, integrated elastic wipers on the end faces of the carriage, sealing strips on the lower face of the carriage and plastic closing plugs.

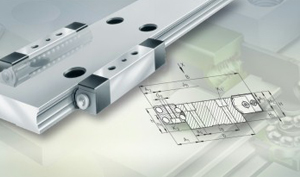

Linear guidance systems with linear recirculating ball bearing units comprise ball bearing units, carriages and guideways. They allow large support distances, have adjustable clearance and are to standard accuracy class G3. The full complement bearing units run on one or both sides of the guideways and, despite their small dimensions, have high load carrying capacity. If the bearing units are screw mounted in carriages, together with the guideways they form four-row linear recirculating ball bearing and guideway assemblies. The ball bearing units are sealed on all sides by the wipers on the end faces and on the sealing strips which form a gap seal in conjunction with the guideway. Linear recirculating ball bearing units can be relubricated. The carriages comprise an anodised aluminium body and two linear recirculating ball bearing units. The carriage has two T-slots for fixing to the adjacent construction. The clearance can be adjusted by means of three screws on the side of the carriage; the screws press on the back of the bearing unit. The guideways are available with raceways on one or both sides. They are made from hardened steel and ground on all sides.

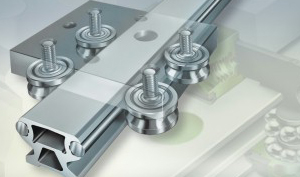

Track roller guidance systems are linear guidance systems that can be compiled according to a modular concept for a wide variety of applications. Due to their lightweight construction, they are highly suitable for use in handling systems. They are particularly characterized by quiet running, high traverse speeds, long displacement distances and the modular concept.we are Leading Supplier's, Trader's & Distributor's Carriages Track roller guidance systems comprise one or more aluminium carriages, profiled track rollers and a straight or curved guideway. Carriages are available as hollow section carriages, open carriages, compact carriages and bogie type carriages for curved, oval and circular guidance systems. Guideways Guideways consist of an aluminium rail with shafts made from rolling bearing steel rolled into the sides. The guideways are available in many different designs, e.g. guideways with a solid profile, hollow section guideways, flat guideways, guideways with a slot etc. Selection depends on the puropse to which the track roller guidance system will be put.

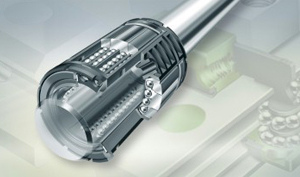

Shaft guidance systems or ball-based or plain linear guidance systems for various areas of use and applications. Linear ball bearings are available as a light range, compact range and heavy range. Mating tracks can be solid shafts, hollow shafts or supported shaft and rail units. The range is rounded off by a large selection of linear ball bearing and housing units and linear plain bearing and housing units. In this case, the linear ball bearings or linear plain bearings are supplied already mounted in ready-to-fit housings. A large number of shafts (with or without machined features), shaft and support rail units and comprehensive accessories allow a broad spectrum of applications.we are Leading Supplier's & Distributor's

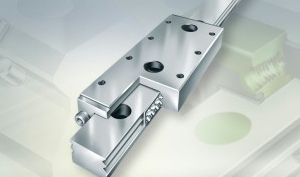

Miniature carriage units Miniature carriage guidance System units with cylindrical roller flat cages are corrosion-resistant, ready-to-fit cage guidance systems for limited stroke lengths. They have a high load carrying capacity, high rigidity and high accuracy whilst requiring very little space. Due to their compact design, they can often be used to replace guidance systems that require significantly more space. The units are produced in numerous carriage and guideway lengths, giving cost-effective designs. Miniature carriage units are linear locating bearings. They can support forces from all directions – apart from the direction of motion and moments about all axes, are more rigid than linear recirculating ball bearing and guideway assemblies and run very smoothly and accurately. The units are particularly suitable for short stroke lengths, low-friction movements, oscillating movements and high loads with high rigidity. Their preferred areas of use include medical equipment, electrical engineering, robotics and laboratory equipment as well as applications under clean room conditions. Miniature linear guidance sets Miniature linear guidance sets with cylindrical roller flat cages are corrosion-resistant, ready-to-fit locating bearings for limited stroke lengths and are preloaded once fitted. These linear guidance systems have high load carrying capacity, high rigidity and high accuracy whilst requiring very little space. Since the distance between the guidance elements can be varied in design, the elements can be easily matched to predetermined adjacent constructions. The sets are supplied in many different lengths for specific applications. The sets are particularly suitable for short stroke lengths, low-friction movements, oscillating movements and high loads with high rigidity. we are Leading Supplier's & Distributor's
