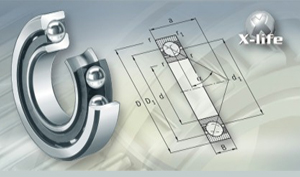

Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. The raceways of the inner and outer rings are offset in relation to each other in the direction of the bearing axis. The bearings are available in open and sealed versions. Their self-alignment capacity is very small. X-life Many sizes of angular contact ball bearings are supplied in X-life design. These bearings are indicated in the dimension tables. Bearings of X-life quality have an improved raceway geometry as well as optimised surfaces. This gives a significant increase in the fatigue limit load of the bearings. In calculation of the expanded adjusted rating life, values up to 50% higher are achieved. In certain applications, a smaller design of bearing arrangement can therefore be used if necessary.
Angular Contact Ball Bearings

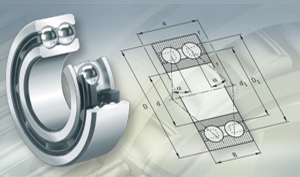

Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. They correspond in design to single row angular contact ball bearings in pairs in an O arrangement but give a narrower design than these. They differ in the size of their contact angle and the design of the bearing rings. The bearings are available in open and sealed versions. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields. Sealed bearings are maintenance-free and, as a result, allow particularly economical bearing arrangements. The self-alignment capacity of angular contact ball bearings is very small.
Bearing arrangements for screw drives are subject to requirements that often cannot be optimally fulfilled by conventional bearings due to their design construction. For the design of maintenance-free or low-maintenance bearing arrangements for the highly dynamic operating conditions of screw drives that are precise, have high load carrying capacity, high rigidity and low friction and are easy to fit, ina/fag maintains a wide range of axial angular contact ball bearings. With this highly developed product range, the best application-specific solution can be found for all the technical and economic requirements placed on screw drive bearing arrangements.

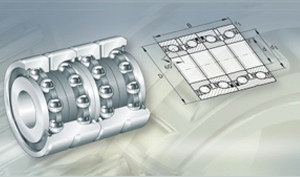

Axial angular contact ball bearings are available in single row, double row or triple row ready-to-fit units. They are self-retaining and comprise thick-walled, geometrically stable outer rings, ball and cage assemblies and single-piece or two-piece inner rings. In several series, the outer ring has through holes for straightforward flange mounting of the bearing to the adjacent construction. The bearing rings are matched to each other such that a defined preload is achieved once the rings are clamped by means of a precision locknut.
We offer a precision engineered range of Sealed Bearings to our clients. These are a kind of roller bearings with cylindrical rollers that are long and thin in relation to their diameter. In spite of their low cross section, needle these bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.we are Leading Supplier's, Trader's & Distributor's
We offer a precision engineered range of Angular Contact Bearings to our clients. These are a kind of roller bearings with cylindrical rollers that are long and thin in relation to their diameter. In spite of their low cross section, needle these bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.we are Leading Trader's, Supplier's & Distributor's
