Rajesh Bearing

Single Row Ball Roller Bearings

Series BXRE

High load rating, dimensions in accordance with DIN 625-1
Long rating life
Downsizing possible

Downsizing BXRE bearings open up new opportunities for downsizing, which means less radial space with the same shaft diameter and the same basic load rating.

Bearing designation	d	D	B	ØRE	Z	C	C0
Ball bearing 6307	35	80	21	13,494	8	33 500 N	19 000 N
Ball roller bearing BXRO207	35	72	17	11,112	14	34 500 N	23 800 N

Significantly Higher Load Carrying Capacity Do you have applications where particularly heavy loads are involved? Our BXRE bearing offers a higher load carrying capacity (C) than a standard ball bearing in the same space. This increase is attributed to 50 % more rolling elements (Z) that are fitted by means of innovative assembly methods. Thanks to the achieved rolling element filling capacity of more than 90 %, the BXRE bearing withstands even the most extreme loads.

Bearing designation	d	D	B	ØRE	Z	C	C0
Ball bearing 6207	35	72	17	11,112	9	25 500 N	15 300 N
Ball roller bearing BXRO207	35	72	17	11,112	14	34 500 N	23 800 N

ØRE = Diameter of rolling elements, Z = Number of rolling elements

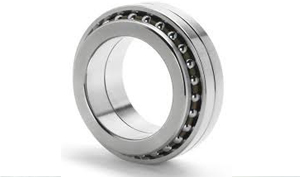

Double Row Ball Roller Bearings In O Arrangement

series bxro

increase in performance compared with series 32 ball bearing because of up to 50 % more rolling elements
increased rating life

improved performance and higher bearing accuracy: competition for bearings with split inner rings ball roller bearings series bxro are double row bearings whose rows of rolling elements are in an o arrangement. They can thus support both radial and axial forces. in comparison to series 32 ball bearings, up to 50% more rolling elements can be fitted in these ball roller bearings due to the innovative assembly method, which enables higher basic load ratings in the same space. the advantages of the bxro compared with the 33 series (three ring bearings) lie in the simplified assembly as well as the increased bearing accuracy due to the optimized raceway geometry and the single-piece inner ring.

bearing designation	d	d	b	øre	z	c	c0
ball bearing 3207	35	72	27	11,112	9	39 000 n	28 500 n
ball roller bearing bxro207	35	72	27	11,112	14	52 000 n	44 500 n

øre = diameter of rolling elements, z = number of rolling elements

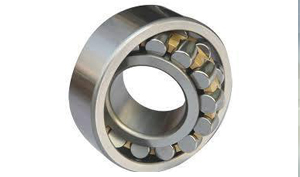

Rolling Bearings

We offer a precision engineered range of Rolling Bearings to our clients. These are a kind of roller bearings with cylindrical rollers that are long and thin in relation to their diameter. In spite of their low cross section, needle these bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.

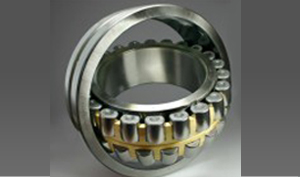

Double Row Bearings

Double row Bearings consists of a plain bearing, with a ball pushing, inside a cylindrical housing. It is used to different load capacity, lubrication requirement, high alternating loads, very high radial loads and high sock loading.we are Leading Supplier's, Trader's & Distributor's We also offer Double row Spherical Roller Bearings in customized specifications as per the clients’ requirements.
