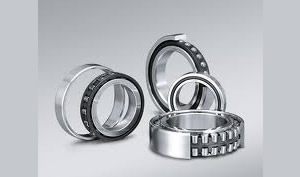

Spindle Bearings are single row angular contact ball bearings comprising solid inner and outer rings and ball and cage assemblies with solid window cages. They cannot be dismantled. The bearings are available in open and sealed versions. Spindle Bearings have restricted tolerances. They are particularly suitable for bearing arrangements with very high requirements for guidance accuracy and speed capacity. They have proved highly suitable for the bearing arrangements of spindles in machine tools.. we are Leading Supplier's & Distributor's
Precision Bearing
Four point contact bearings are single row angular contact ball bearings and therefore require significantly less space in an axial direction than double row designs. The bearings comprise solid outer rings, split inner rings and ball and cage assemblies with brass or polyamide cages. Due to the two-piece inner rings, a large number of balls can be accommodated. The halves of the inner ring are matched to the specific bearing and must not be interchanged with those of bearings of the same size. The outer ring with the ball and cage assembly can be fitted separately from the halves of the inner ring.. we are Leading Supplier's & Distributor's
Self-aligning ball bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed versions.. we are Leading Supplier's & Distributor's
Barrel Roller Bearings are single row, self-aligning roller bearings. They comprise solid outer rings with a concave raceway, solid inner rings with two ribs and a cylindrical or tapered bore and barrel rollers with cages. The bearings cannot be dismantled. barrel roller bearings are particularly suitable where high radial shock type loads occur and misalignments must be compensated, see compensation of angular misalignments. Their axial load carrying capacity is small..we are Leading Supplier's & Distributor's
Tapered roller bearings comprise solid inner and outer rings with tapered raceways and tapered rollers with cages. The bearings are not self-retaining. As a result, the inner ring together with the rollers and cage can be fitted separately from the outer ring. Tapered roller bearings can support axial loads from one direction as well as high radial loads. They must normally be axially adjusted against a second bearing fitted in a mirror image arrangement. we are Leading Supplier's & Distributor's X-life We are offering our proven catalog series in X-life quality. The geometry, surfaces and materials were optimized. Thus FAG Tapered Roller Bearings X-life offer an increase in the basic dynamic load ratings (Cr) of up to 20 % compared to previous designs, an increase in the basic rating life of approximately 70 % under the same operating conditions und up to 75 % less friction. A convincing advantage of X-life are product characteristics that provide you with new design perspectives, for example, to design particularly low-noise or high load capacity systems solutions.
The Super Precision Bearings, which we are marketing in India, are class apart in comparison to others. As the name suggests these bearings are designed to release extreme rotational speed, high accuracy and high firmness required during difficult situation. Besides, these bearings help in the quite and smooth functioning of the machine. They cause minimal rubbing and heat generation. Though they are very sophisticated the bearings will not cost much to the users, thus giving them the advantage of quality at an affordable price.we are Leading Supplier's & Distributor's
Spherical roller bearing are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings with cylindrical or tapered bores. The symmetrical barrel rollers freely align themselves to the concave outer ring raceway. As a result, shaft deflections and mislignments of the bearing seats are compensated. X-life Many sizes of spherical roller bearings are supplied in X-life design. These bearings do not have a central rib on the inner ring so longer barrel rollers can be fitted; improved kinematics, optimised surfaces and even higher performance materials are possible. As a result, the bearings show a significant increase in the basic dynamic load rating and, under the same operating conditions, in the basic rating life. In certain applications, a smaller design of bearing arrangement can therefore be used if necessary. we are Leading Supplier's & Distributor's
We offer a precision engineered range of Precision Ball Bearings to our clients. These are a kind of roller bearings with cylindrical rollers that are long and thin in relation to their diameter. In spite of their low cross section, needle these bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.we are Leading Supplier's & Distributor's
